BLA Halogen Machine Lamp Series

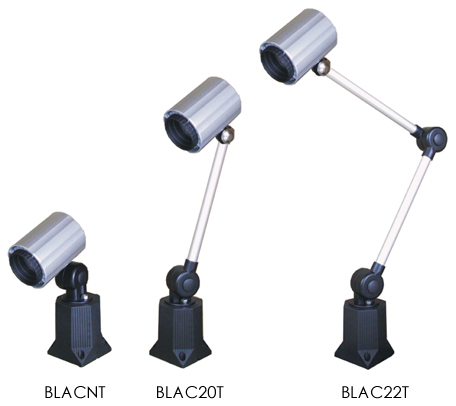

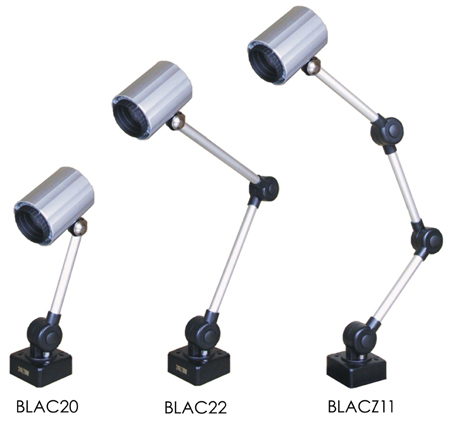

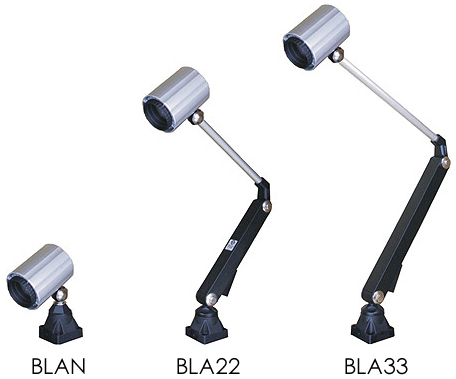

  BLA Square Arm   BLAC Swivel Arm   BLACT Transformer   BLAG Gooseneck



1.Waterproof Lamp
   Head:
Highly enclosed features, waterproof lighting head, tempered glass, and Teflon wires, avoid any water or oil entering into the illumination head, which enables BLA series ideally used on a machine where powerful lubricant or cooling liquid is applied.
2.Heat Dissipation:

Exclusively designed lamp head by two shades for fast heat dissipation, of which maintains constantly low temperature lighting, and gives extensive bulb service life. Outer shade is made of aluminum to enhance heat dissipation.

3.Study Construction: BLA/ BLAC/BLACT
The entire unit is extruded from aluminum material, anode treated for scratch prevention. The elbow and base are made of engineering plastic, durable and well resistant to electric shock and high temperature.
4.Convenient
   Adjustment:

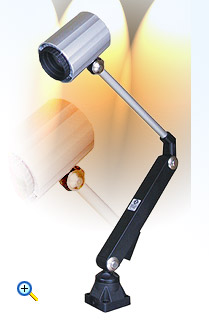

80ø dia. refined lamp head and multi-position swiveling base constructed of steel ball and articulated arms permit positive and convenient adjustment to any lighting direction. (See Picture 005) Various arm lengths are available.

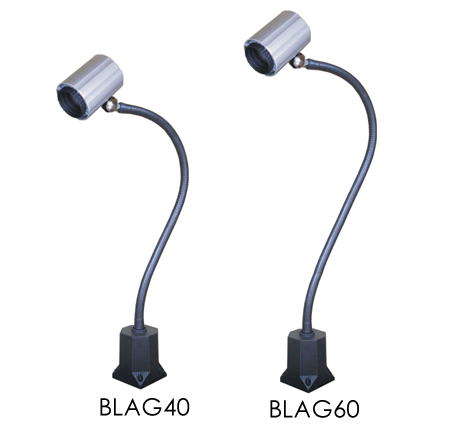

BLAG
Flexible gooseneck arm is easily set to any lighting area, making it especially ideal for light on medium duty machinery, office or house lighting. Units are compact designed for space saving.

6.Supply Voltage: 12V or 24V. Safety class: III
7.Choices of Supply
   Voltage:
BL (Electronic Transformer)
Square arm with built-in electronic transformer (See Picture 007) suited for 120V/230V. Safety class: I.
BLCT/BLG (Winding Transformer)
Lamp base with built-in winding transformer (See Picture 009) suited for 120V/230V. Safety class: II.
8.Products Update LED lamp bulb is available, click for checking it out.
9.Quality Guarantee: In accordance with EN/EEC/CE regulations.
10.Enclosure Type:

IP65
