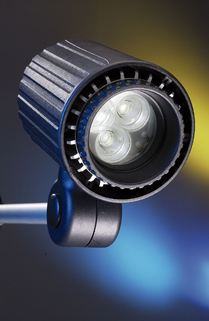

DB Spot LED Machine Lamp
1.Waterproof Lighting
   Head :
Highly enclosed features, waterproof lighting head, tempered glass, and Teflon wires, avoid any water or oil entering into the illumination head, which enables Eminent Main lamps ideally used on a machine where powerful lubricant or cooling liquid is applied.
2.Sturdy Construction : The entire unit is extruded from aluminum material, anode treated for scratch prevention. The base is made of engineering plastic, durable and well resistant to electric shock and high temperature.
3.Heat Dissipation Exclusively designed illuminating head with two shades for fast heat dissipation that maintains constantly low temperature lighting, and gives extensive bulb service life as well as prevents light fades from long-term use.
4.Convenient Adjustment: Multi-position swiveling base constructed of steel ball and articulated arms permit positive and convenient adjustment to any lighting direction. Various arm lengths are available and various mounting methods fit different working place requests.
5.Elegant Appearance : The smooth, slim-line, and classic appearance will create elegant visual effect on your machine tool.
6.Energy Saving:
Compare with halogen lamp, It's 5 times more lifespan low
energy consumption and electricity costs saving.
7.No Flickering: No problem of flickering and provides more steadily brightness while machine is working and vibrating.
8.Supply Voltage : 12V AC/DC or 24V AC/DC. AC 100V~240V Safety class: III
With built-in winding transformer (See Picture 009) suited for 120V/230V. Safety class: II.
9.Quality Guarantee : In accordance with EN/EEC/CE regulations.
10.Enclosure Type : IP65
11.Download: click
