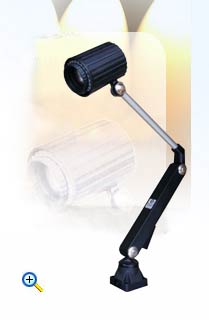

BL Halogen Machine Lamp Series
  BL Square Arm   BLC Swivel Arm   BLCT Transformer   BLG Gooseneck



1.Waterproof Lamp
   Head:
Highly enclosed features, waterproof lighting head, tempered glass, and Teflon wires, avoid any water or oil entering into the illumination head, which enables BL series ideally used on a machine where powerful lubricant or cooling liquid is applied. Suit for severe environment.
2.Heat Dissipation: Exclusively designed illuminating head with two shades for fast heat dissipation that maintains constantly low temperature lighting, and gives extensive bulb service life. Outer shade is made of engineering plastic to isolate heat conduction.
4.Study Construction: BL/ BLC/BLCT
Light arm is extruded from aluminum material, anode treated for scratch prevention. The elbow and base are made of engineering plastic, durable and well resistant to electric shock and high temperature. Extremely light in weight.
5.Convenient
   Adjustment:

80ø dia. refined lamp head and multi-position swiveling base constructed of steel ball and articulated arms permit positive and convenient adjustment to any lighting direction. (See Picture 005) Various arm lengths are available.
BLG
Gooseneck arm with joint for connecting lamp head provides a flexible direction adjustment.

6.Supply Voltage: 12V or 24V. Safety class: III
7.Choices of Supply
   Voltage:
BL (Electronic Transformer)
Square arm with built-in electronic transformer (See Picture 007) suited for 120V/230V. Safety class: I.
BLCT/BLG (Winding Transformer)
Lamp base with built-in winding transformer (See Picture 009) suited for 120V/230V. Safety class: II.
8.Products Update LED lamp bulb is available, click for checking it out.
9.Quality Guarantee: In accordance with EN/EEC/CE regulations.
10.Enclosure Type:

IP65
