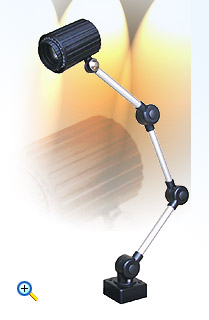

HWC/HWT Halogen Machine Lamp |
1.Waterproof
Lighting
Head: |
Highly enclosed features,
waterproof lighting head, tempered glass, and Teflon wires,
avoid any water or oil entering into the illumination head,
which enables Eminent Main lamps ideally used on a machine where
powerful lubricant or cooling liquid is applied. Suit for severe
environment. |
2.Superior
Lighting
Performance: |
Halogen lamp
and low voltage circuit each assures of high illuminance and
safety. |
| 3.Study Construction: |
Light arm is extruded from aluminum
material, anode treated for scratch prevention. The elbow and
base are made of engineering plastic, durable and well resistant
to electric shock and high temperature. Extremely light in weight. |
|
4.Heat Dissipation: |
Exclusively
designed illuminating head with two shades for fast heat dissipation
that maintains constantly low temperature lighting, and gives
extensive bulb service life. Outer shade is made of engineering
plastic to isolate heat conduction. |
| 5.Convenient Adjustment: |
Concentrated light source provides
high intensity and high efficiency lighting. Multi-position
swiveling base and articulated arms permit positive and convenient
adjustment to any lighting direction. Various arm lengths are
available. |
| 6.Upon
request: |
Lamp without
switch is available upon request. |
| 7.Entirely Waterproof: |
The columned articulation arm
provides a wide adjustment direction as well as waterproof function.
Device of waterproof case in the HSC series base is available
to protect against water and coolants interfering wire connections.
(See Picture
008) |
| 8.Elegant
Appearance: |
The smooth,
slim-line, and classic appearance will create elegant visual
effect on your machine tool, or attractive tone in your home
or office. Various mounting methods. |
| 9.Supply Voltage: |
12V or 24V. Safety class: III |
10.Choices
of Supply
Voltage: |
With built-in
winding transformer (See Picture
009) suited for 120V/230V. Safety class: II. Separate transformers
are available. |
| 11.Quality Guarantee: |
In accordance with
EN/EEC/CE regulations. |
| 12.Enclosure Type: |
IP65 |
