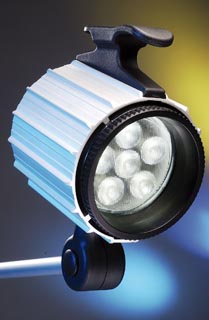

HS Halogen Machine Lamp
1.Waterproof Lighting
   Head :
Highly enclosed features, waterproof lighting head, tempered glass, and Teflon wires, avoid any water or oil entering into the illumination head, which enables Eminent Main lamps ideally used on a machine where powerful lubricant or cooling liquid is applied. (See Picture 001)
2.Superior Lighting
   Performance :
Halogen lamp and low voltage circuit each assures of high illuminance and safety.
3.Sturdy Construction : The entire unit is extruded from aluminum material, anode treated for scratch prevention. The elbow and base are made of engineering plastic, durable and well resistant to electric shock and high temperature. Extremely light in weight.
4.Heat Dissipation : Exclusively designed illuminating head with two shades for fast heat dissipation that maintains constantly low temperature lighting, and gives extensive bulb service life. (See Picture 002)
5.Convenient Bulb
   Replacement :
The lens holder is threaded to head shade allows bulb can be replaced just as easily, which requires no assistance of any tool. (See Picture 003)
6.Switch Mounted
   Separately :
The switch (See Picture 004) is separately mounted on the handle to isolate heat conduction from the head, which provides convenient operation and extends switch life.
7.Convenient Adjustment: Multi-position swiveling base constructed of steel ball and articulated arms permit positive and convenient adjustment to any lighting direction. (See Picture 005) Various arm lengths are available.
8.Upon request : Lamp without switch is available upon request.
(See Picture 006)
9.Elegant Appearance : The smooth, slim-line, and classic appearance will create elegant visual effect on your machine tool, or attractive tone in your home or office. Various mounting methods.
10.Supply Voltage : 12V or 24V. Safety class: III
11.Choices of Supply
     Voltage :
With built-in electronic transformer (See Picture 007) suited for 120V/230V. Safety class: I. Separate transformers are available.
12.Quality Guarantee : CE and more.
13.Enclosure Type : IP65
